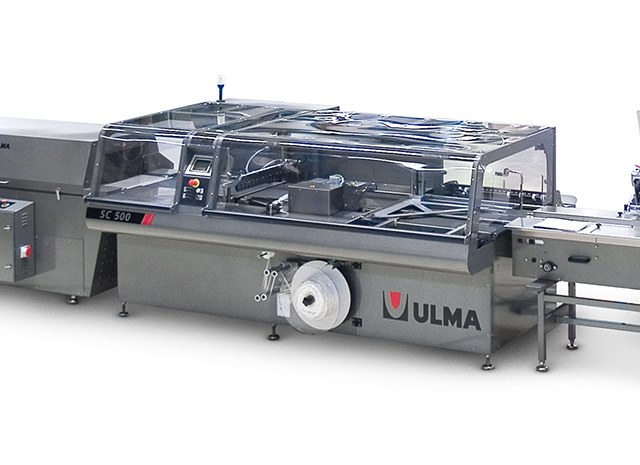

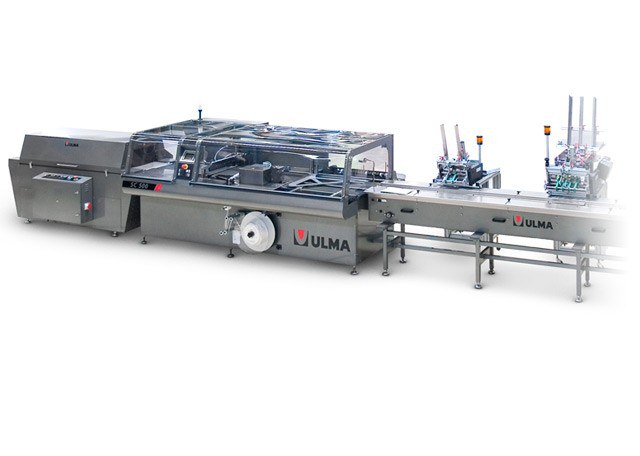

SC 500

The automatic SC 500 continuous side seal machine has been designed to pack a great range of products whatever might be the length, with shrink and non shrink films, achieving productions up to 125 cycles/min.
With simple regulations, quickly adapts to the different products to be wrapped, without need of tools. Side sealed packs avoid seals over the top and bottom of the package, allowing a clear view of the product.

An industrial PC control system includes a simple and quick communication via touch screen, providing constant complete diagnostics of the machine status and the control parameters.

• High quality packaging without seal tensions and intermediate belt.
• Automatic in-line conveyor belt feeding system with product separation and alignment and manual conveyor width regulation.
• Motorized 90º reel holder with adjustable mechanical perforation and end-of-film detection.
• In feed moving belt to make the change and load of film easier.
• Motorized triangle frame height.
• Intermittent working mode: pack after pack.
• Side seal with heated rollers with temperature regulation.
• Cross seal and cut by hot knife with temperature regulations and opening at any height.
• Automatic adjustment of the sealing height.
• Automatic film scrap wheel with easy access. Film distribution device and film break detection.
• "No product - No bag" device.
• 5" touch screen industrial PC control, for up to 100 different product format memory and operation diagnosis.
• Protections and safety systems according to CE regulations.

• Automatic pack format adjustment.
• Cross sealing bar and side seal for PE.
• Film folding system from flat to centrefold.Perforación neumática y/o en caliente del film.
• Pneumatic hole punch and/or hot film perforation.
• Intermediate aspiration belt for light product transfer.
• Easy opening package device. Device for unstable products.
• Double reel holder.
• End-of-film light and sound alarm.
• Film centring device for printed film.
• Machine direction: from left to right.
• Stainless steel version.
• Different feeding and exit elements (feeders, printers, labellers, conveyors…)
• MODEM for failure diagnostic.
