SVA-90

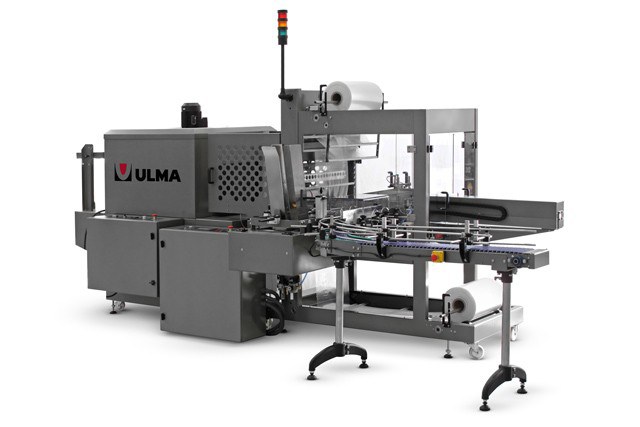

Automatic sleeve wrapper with 90º in feed, ULMA brand, model SVA90º , of modular design, to wrap with flat shrink film a great range of individual products and collations.

The sleeve wrapping machines work with two flat rolls of film, cross sealed. Complete closing of the pack is not needed.

  • Maximum product height: 350 mm.
  • Productions up to 1.080 cycles / h depending on product and film.
  • Powered in feed belt at 90º, with speed regulation for automatic loading of the product.
  • Powered reel holders (top and bottom).
  • Product introduction and seal by side cylinder (pusher) activated by switches.
  • Sealing and cutting with hot clamp with electronic regulation of temperature. Low maintenance of the sealing clamp.
  • Safety system in the sealing clamp to protect the operator and/or the product.
  • Pneumatic presser over the exit table to hold the product during the cutting and sealing process.
  • Stainless steel out feed table with gravity rollers.
  • Control panel of simple use for all machine functions.
  • Wheels and height adjustable legs for transport and positioning.
  • Machine orientation: from right to left.
  • Easy access to all elements.
  • Electric cabinet with ventilation.
  • Available in painted and stainless steel version.
  • Protections and safety systems according to CE norms.
