SVS

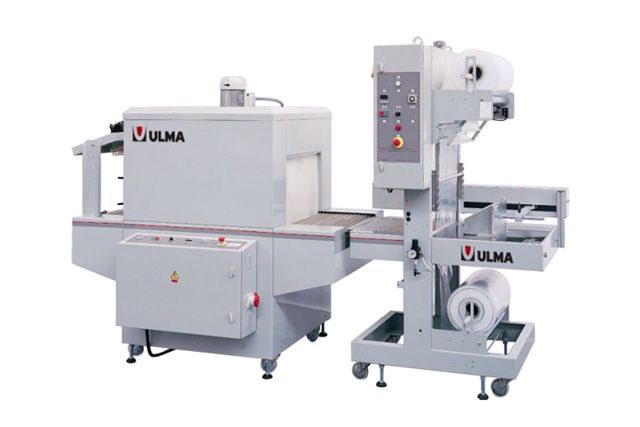

Semiautomatic sleeve wrapper ULMA brand, model SVS 60x35, of modular design, to wrap with flat shrink film a great range of individual products and groups.

The sleeve wrapping machines work with two flat rolls of film, cross sealed. Complete closing of the pack is not needed.

• Maximum product height: 350 mm.
• Productions up to 600 cycles / h depending on product and film.
• Stainless steel in feed table.
• Powered reel holders (top and bottom).
• Manual placement of products over the in feed table. Pneumatic cylinder with paddle activated by buttons.
• Pneumatic seal.
• Sealing and cutting with hot clamp with electronic regulation of temperature. Low maintenance of the sealing clamp.
• Automatic cut and seal cycle when the paddle goes backwards.
• Safety system in the sealing clamp to protect the operator and/or the product.
• Pneumatic presser over the exit table to hold the product during the cutting and sealing process.
• Stainless steel exit table with gravity rollers.
• Control panel of simple use for all machine functions.

• Machine of modular design. Heavy duty frame construction made on painted and laminated steel tube.
• Wheels and height adjustable legs for transport and positioning.
• Machine orientation: from right to left.
• Easy access to all elements.
• Electric cabinet with ventilation.
• Protections and safety systems according to CE norms.
